Overview

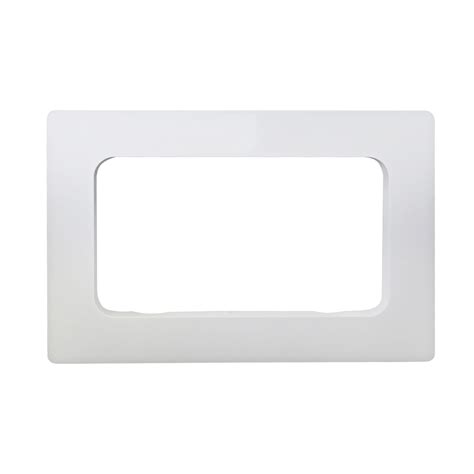

The Oatey 38941 Plastic Quadtro Washing Machine Box Faceplate is designed as a component for Oatey® Quadtro center and offset washing machine outlet boxes. This faceplate provides a clean and functional finish for the washing machine outlet, ensuring proper connection and support.
Key Features and Functionality
Installation and Compatibility
This plastic faceplate is engineered for easy snap-on installation, simplifying the setup process for plumbers and DIY enthusiasts. It is specifically designed to work with Oatey® Quadtro center and offset washing machine outlet boxes. The integrated 2 in. drain opening is compatible with both PVC and ABS Sch. 40 DWV (Drain, Waste, Vent) pipe, offering versatility in material selection for plumbing systems.
Material and Durability
Constructed from high-impact polystyrene, the faceplate is built to withstand the demands of a typical laundry room environment. This material choice ensures durability and longevity, resisting cracks and breaks under normal use.
Support and Mounting Options
The faceplate is designed to accommodate up to four support brackets, which are sold separately. These brackets allow for flexible mounting configurations, enabling both top or bottom mounting depending on the specific installation requirements and preferences.
Dimensions and Fit
The snap-on frame of the faceplate is designed to accommodate openings up to 1 inch in depth. The overall dimensions of the faceplate are 11-3/4 inches wide by 10-1/8 inches high. It is designed to fit over an opening measuring 8-3/4 inches wide by 7-1/2 inches high by 3-5/8 inches deep, ensuring a secure and flush fit with the outlet box.
Technical Specifications Summary
Below is a summary of the key technical specifications for the Oatey 38941 Plastic Quadtro Washing Machine Box Faceplate:
| Feature | Specification |
|---|---|
| Product Name | Oatey 38941 Plastic Quadtro Washing Machine Box Faceplate |
| Material | High-impact polystyrene |
| Drain Opening Size | 2 inches |
| Pipe Compatibility | PVC or ABS Sch. 40 DWV pipe |
| Frame Accommodation | Up to 1 inch depth |
| Support Brackets | Accommodates up to 4 (sold separately) |
| Mounting Options | Top or bottom |
| Faceplate Dimensions (W x H) | 11-3/4 in. x 10-1/8 in. |
| Opening Fit Dimensions (W x H x D) | 8-3/4 in. x 7-1/2 in. x 3-5/8 in. |
