Moisture meters are essential measuring instruments designed to determine the percentage of water within a substance. The physical properties of materials are significantly influenced by their moisture content, and prolonged exposure to high moisture levels can lead to progressive degradation. Therefore, moisture content is a critical factor in assessing whether a material is ready for use, unexpectedly wet or dry, or requires further examination.

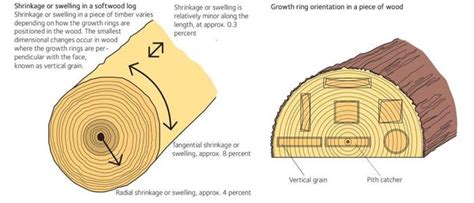

Wood and paper products are particularly sensitive to changes in their moisture levels. For instance, newly-cut logs can exhibit a moisture content (MC) of 80% or more, depending on the species. As wood dries, it shrinks and can also split, twist, or change shape. To mitigate these issues, most wood undergoes a drying process, typically in a kiln, although air drying is a slower alternative. In many regions of the United States, air-dried wood typically reaches a minimum moisture content of about 12 to 15 percent. Kiln drying processes are often monitored using moisture meters to ensure the wood is suitable for its intended purpose. This makes moisture meters indispensable tools for woodworkers, building inspectors, carpenters, hobbyists, and flooring installers, who must verify that the wood's MC is compatible with the ambient relative humidity of its environment.
The implications of varying moisture content in wood extend beyond simple dimensional changes. A moisture meter provides an approximation of the wood's moisture content, aiding in the decision-making process for its suitability and in planning projects that account for potential future dimensional shifts due to relative humidity changes. The extent of shrinkage during drying varies significantly between wood species. Additionally, the difference between radial and tangential shrinkage differs by species. Woods with a low tangential-to-radial shrinkage ratio, such as teak and mahogany, are less prone to distortion from moisture fluctuations compared to woods with a high ratio, like eastern white pine and certain oak species. For woodworking, flooring, construction, or any building project, achieving an equilibrium moisture content (EMC) is ideal. EMC signifies that the wood is balanced with its surrounding environment, neither gaining nor losing moisture.
Types of Moisture Meters

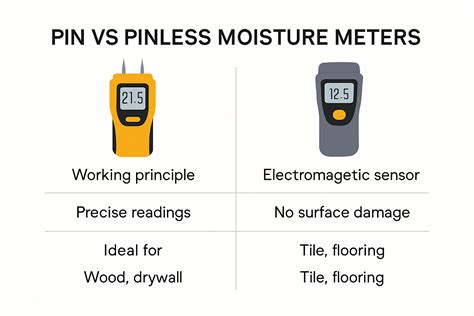

For general woodworking applications, two primary types of moisture meters are available. Depending on the brand, pin-type meters operate by measuring the electrical resistance (resistivity) or its inverse, conductance, of the wood. Since water conducts electricity, an increase in water content correlates with increased conductance. These meters feature two pin electrodes that are inserted into the wood fibers to directly measure electrical resistance or conductivity.
The second type of moisture meter utilizes the dielectric properties of wood. This meter incorporates two pads that function as rubber electrodes. When pressed against the wood substrate, these pads transmit and receive a signal. Moisture meters can also be employed by building industry professionals and water damage restoration consultants to ascertain the precise moisture content of various materials found in the built environment, such as gypsum board drywall or interior finish plaster. Locating high moisture within buildings is crucial for identifying hidden leaks. Moisture content in these materials is measured and displayed similarly to wood, often in Wood Moisture Equivalent (WME), which represents the theoretical moisture content a substrate would have if it were wood.
Moisture Meters in Paper Manufacturing
Paper manufacturing is a complex industry with an intricate process. It involves three main steps: forming, pressing, and drying. After the paper is formed and pressed, it enters the critical drying phase. This stage can be challenging due to variations in relative and absolute humidity, which affect drying time. Differences in air temperature can alter the amount of water vapor present, making it difficult to achieve the ideal final moisture percentage in the paper without accurate measurement. Excessive residual moisture can significantly impact the paper's weight, dimensions, and flatness (causing "curl"), as well as its conductivity and strength, and its ability to maintain a fold. Consequently, a paper moisture meter is practically a necessity for successful paper drying and manufacturing.
Moisture meters designed for near-line testing are utilized in paper manufacturing and processing facilities, as well as printing plants and for corrugated cardboard. A key advantage of using moisture meters is their speed. The quick and accurate testing eliminates the need for time-consuming sampling and pre-processing. Paper factories, mills, and processing centers must effectively monitor and control moisture to ensure optimal quality. Moisture can be introduced into production lines through the environment, during processes, or from raw materials. Moisture control plays a vital role in paper production, with moisture analyzers enabling manufacturers to accurately gauge moisture levels in each batch.
The drying process in paper production, which involves heat, pressure, and water removal, can be challenging due to temperature and humidity variances. Too much moisture in paper can adversely affect its dimensions, flatness, weight, conductivity, strength, and foldability. Maintaining proper humidity levels prevents static, paper distortion, and other negative effects. Moreover, appropriate humidity levels contribute to increased operational efficiency and reduced downtime. Industrial moisture analyzers are capable of handling various facility needs, regardless of scale. For instance, the MAC 125 is used globally in paper drying processes, with configurable output signals for "% by volume" or "Humidity Ratio."
DM200P is on testing kraft paper
Understanding Moisture Content and Reading Scales
For those new to moisture meters, understanding terms like "moisture content" and "reading scale" is important. Moisture content (MC) refers to the amount of moisture present in a material, often expressed as a percentage of the material's mass (e.g., X% MC). While oven-dry tests measure moisture content by weight (weighing a sample before and after drying in an oven), these methods can be time-consuming and prone to human error.
The alternative method involves using moisture meters, with the specific operation varying by type. Pinless moisture meters employ electromagnetic waves to scan a material. Their contact plate requires a flat surface and sufficient thickness for proper operation, as poor contact can distort the radio wave signal. Pin-type moisture meters, on the other hand, use the principle of electrical resistance. A set of pins is inserted into the material, and an electric current passes between them through the material. The term "reading scale" is crucial here because each moisture meter is typically calibrated for accurate (quantitative) readings in a specific material. For example, some meters are optimized for wood. Other meters offer a "reference scale" mode, which provides a qualitative estimate of moisture without being calibrated for any single material. In this mode, users test a known dry sample to establish a reference point for comparison.
Even within a single reading scale, variations in material properties can occur. Hundreds of wood species, for instance, possess unique specific gravity and electrical conductivity, which affect pinless and pin-type meters, respectively. High-quality wood moisture meters may include a species correction feature to address this, essentially offering a reading scale specialized for a particular wood type.
Moisture Analyzers in Various Industries
Precise moisture measurement is a critical practice in industries such as food processing, pharmaceuticals, agriculture, and chemicals. Standard testing procedures are often time-consuming and susceptible to human error, making them impractical for current production demands. Moisture analyzer instruments provide a reliable solution.
Moisture Analyzers: How They Work
A moisture analyzer is a laboratory-based instrument that provides a quantitative measurement of moisture content, typically using the loss-on-drying method. This method is based on thermogravimetric analysis, determining the weight loss of a sample when dried. It is widely used in manufacturing, research and development, and material testing for various industries.
- Food Industry: Moisture analysis is vital for ensuring consistency, shelf life, and regulatory compliance. Excess moisture can lead to microbial growth and spoilage, while insufficient moisture can affect texture and consumer acceptance.
- Pharmaceutical Industry: Accurate moisture content is essential for the chemical and physical stability of drugs, as moisture-sensitive ingredients can degrade or change properties.
- Chemical and Petrochemical Applications: Moisture analyzers help maintain the stability and reactivity of compounds, as many chemical reactions are moisture-sensitive, and improper levels can lead to inconsistent yields or hazardous outcomes.
- Agriculture: Moisture analyzers are used to measure moisture in grains, soil, fertilizers, and other organic materials.
Types of Moisture Analyzers

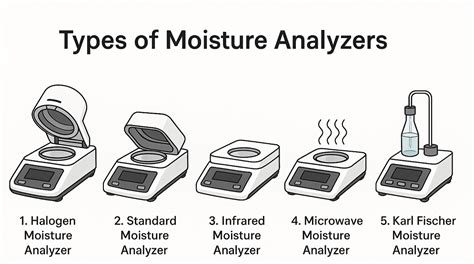

Moisture analyzers are primarily categorized by their heating methods:
- Halogen Moisture Analyzers: These use a halogen lamp to heat the sample and record weight loss as water evaporates.
- Standard (Ceramic) Moisture Analyzers: These thermogravimetric analyzers use a heating element to dry the sample and calculate weight loss.
- Infrared Moisture Analyzers: These use infrared heating to evaporate water and measure the resulting weight loss.
- Microwave Moisture Analyzers: These employ microwaves to rapidly heat water molecules within a sample, causing evaporation and allowing for precise moisture content calculation.
- Karl Fischer Moisture Analyzers: These laboratory devices precisely measure water content using the Karl Fischer titration principle, which involves a chemical reaction between water and a specialized reagent.
Selecting and Using a Moisture Analyzer
When selecting a moisture analyzer, key features to consider include weighing capacity, temperature range, type of heating, data management capabilities, and user-friendliness. Data management is increasingly important, with intuitive interfaces, touch controls, and pre-set drying modes enhancing ease of use. Tools with step-by-step instructions and low calibration requirements minimize operator errors and training time.
The process of using a moisture analyzer generally involves:
- Sample Preparation: Prepare a representative sample.
- Weighing the Sample: Accurately weigh the sample and record its initial weight.
- Loading the Sample: Place the sample evenly in the analyzer's pan.
- Setting Parameters: Input desired temperature and analysis time.
- Initiating Analysis: Begin the moisture analysis process.
- Results and Interpretation: Obtain the percentage of moisture content upon completion.
Regular calibration and maintenance, such as daily calibration using standard reference material, are essential for accuracy. The cost of a moisture analyzer can range from approximately £40,000â£60,000 for entry-level units to £100,000 or more for high-end models with advanced features.
Factors Affecting Moisture Meter Readings
Several factors can influence the accuracy of moisture meter readings. Metal is a significant adversary to moisture meters, as its conductivity can lead to false readings, especially when present in unseen areas of a building. Salt, by increasing a material's water retention and conductivity, can also affect readings. While professional meters are generally reliable, periodic calibration is recommended.
For all-in-one meters that combine pinless, pin-type, and hygrometer functions, unregulated temperatures can negatively impact readings. In hygrometer mode, temperature fluctuations, such as those caused by an open window or a heater, can distort ambient moisture readings. Condensation, often a byproduct of temperature differences between a material and its surroundings, can also mislead meters, sometimes resulting in higher readings for pin-type meters in buildings.
Improper usage is another common source of poor measurements. For instance, not all non-invasive meters can accurately take readings through vinyl flooring. Water is fundamental to life and plays a critical role in physical and chemical functions. Moisture content analysis is a cornerstone of material quality control in production and laboratory settings. Excessive or deficient moisture can adversely affect a material's physical properties, including its weight, density, viscosity, refractive index, and electrical conductivity.
Methods for testing moisture content exploit these physical or chemical properties. Direct measurements, such as Karl Fischer titration, address the presence of water directly. Alternatively, the loss-on-drying technique involves heating a sample and measuring the weight loss. This process, typically done in a drying oven with a balance, calculates moisture content using the formula ([initial weight â end weight]/initial weight). However, this method usually takes several hours and is susceptible to user error.
The OHAUS MB Series of moisture analyzers measure moisture via the loss-on-drying technique, defining moisture as the mass loss observed when a sample is heated. This method is based on the vaporization of water but does not distinguish water loss from the loss of other volatile components or sample decomposition. OHAUS moisture analyzers utilize a heating element for this process.
When using a moisture analyzer, two primary approaches exist. If a reference value (from a drying oven, for example) is available, method development can target this value. It is advisable to start with default settings and adjust the temperature to find the optimal setting. If the moisture content result is too low, increasing the temperature may help; if too high, lowering it is recommended. Always inspect the sample after drying to ensure it has not burned or decomposed. The OHAUS Moisture Guide offers more in-depth information on these and other topics.
