Spray foam is a unique insulation and sealing product. The product is applied on site, so it conforms to the surface where it is applied. Spray foam insulation and insulating foam sealants are made by mixing and reacting unique liquid components. The liquids react very quickly when mixed and applied on site, expanding on contact to create foam that insulates, seals gaps, and can form air, moisture, and vapor barriers. Spray foam is versatile and can seal wall cavities, exterior walls, crawlspaces, attics, and small gaps and cracks throughout a house. Each spray foam type and method of application offers unique benefits.
Understanding Spray Foam Insulation Types and Properties
R-value means resistance to heat flow. The higher the R-value, the greater the insulating power. Builders often turn to high-density spray foam when high insulation values and strength are needed. As its name implies, this foam has a denser structure than either of the other types of spray foam. This spray foam is often an excellent choice for roofing or other exterior insulation because of its seamless, monolithic nature. High-density spray foam can also help reduce energy costs significantly over a roof’s lifetime due to its thermal resistance properties. It also offers increased protection against air and water infiltration and strengthens the structure to which it is applied.
Medium-density foam is applied as low- or high-pressure two-component spray foam. Medium-density foam offers specific benefits depending on the climate and the type of building in which it is used. Like low-density foam, medium-density SPF is often used for continuous insulation, interior wall cavity fill, and unvented attic applications. However, medium-density is a closed-cell spray foam; it is often used where there is need for the greatest R-value insulation per inch possible. Medium-density foam can also provide a high tensile and bond strength.
Also known as open-cell foam, low-density spray foam is spray-applied to provide continuous insulation and an air-sealing barrier. Low-density SPF is also called ½ pound foam, as it weighs almost 0.5 lbs. per cubic foot. Low-density foam is applied as low or high-pressure, two-component polyurethane spray foam. Low-density spray foam can be applied on walls, in unvented attics, to ducts and ceilings, and in vented attics and crawl spaces. It is known as an air barrier but is permeable to vapor and moisture. Due to its relatively large cell structure, low-density foam stays somewhat soft and flexible after curing. Low-density spray foam provides heat insulation and seals airflow through cracks, joints, and seams by filling the cavities.
Spray Foam's Role in Moisture and Air Control

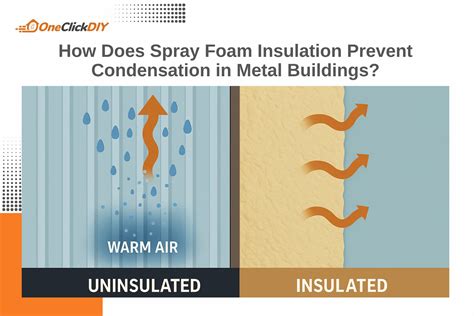

Spray foam insulation creates an air barrier that prevents both air leaks and moisture intrusion through its cellular structure and expansion properties. The material seals gaps, cracks, and penetrations where air typically escapes or enters, while its closed-cell variety also blocks moisture vapor transmission. This guide explains exactly how spray foam accomplishes these protective functions, compares different types available, and helps identify where it makes the most sense in your building envelope.
Spray foam insulation works through a chemical reaction that creates expanding plastic foam. For moisture control, closed-cell spray foam acts as a vapor barrier due to its plastic cell structure. The closed cells prevent moisture vapor from passing through, which helps control condensation within wall assemblies.

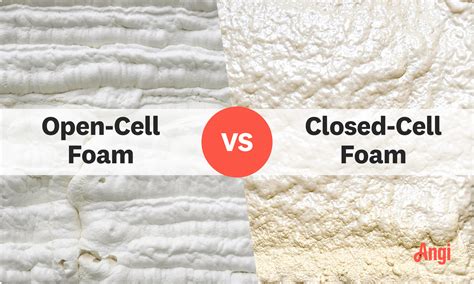

The effectiveness of spray foam for air sealing comes from its ability to conform to irregular surfaces and penetrate small cracks that other materials miss. Two main types of spray foam serve different purposes in building construction:
- Closed-cell spray foam has a denser structure with completely sealed cells, making it impermeable to both air and moisture vapor.
- Open-cell spray foam has partially open cells that allow some moisture vapor transmission while still blocking air movement. It has an R-value of about 3.5-3.8 per inch and remains flexible after curing.
Key Application Areas and Challenges

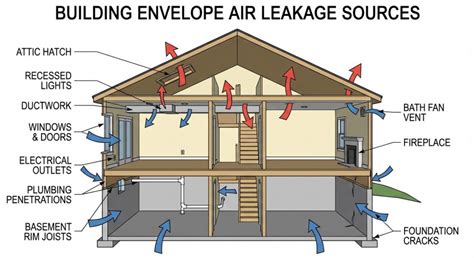

Certain locations in buildings consistently cause air leakage and moisture problems:
- Rim joists at the foundation top typically have numerous gaps between joist ends and foundation walls.
- Window and door penetrations create another problematic area. Traditional sealing methods often fail around the rough openings, allowing air movement that can cause condensation and rot.
- Pipe and wire penetrations through top plates account for a surprising amount of air leakage.
- Cantilevered floors, bay windows, and soffits present unique challenges due to their complex geometry.
The table below shows how spray foam combines multiple functions into one application, unlike traditional materials that require separate air sealing and vapor barrier steps, increasing installation time and potential for errors.
| Feature | Spray Foam | Traditional Materials |
|---|---|---|
| Insulation | Yes | Yes |
| Air Sealing | Yes | Requires separate step |
| Vapor Barrier (Closed-cell) | Yes | Requires separate step |
| Installation Time | Faster (combined steps) | Slower (multiple steps) |
Critical Factors for Successful Spray Foam Application
Proper spray foam application requires specific training and equipment. Professional installers must wear protective equipment, including respirators, as the chemicals can cause respiratory irritation before curing.
Environmental Conditions
Temperature conditions affect spray foam application significantly. Most products require substrate and ambient temperatures between 60-80°F for optimal expansion and adhesion.
Moisture control during installation is critical. Applying spray foam to wet surfaces will prevent proper adhesion and can trap moisture against building materials, potentially causing rot or mold.
Building and Climate Considerations
Building location and climate significantly influence spray foam requirements. Cold climates benefit most from closed-cell foam’s vapor barrier properties, while hot-humid climates often prefer open-cell or hybrid systems that allow some drying potential.
The existing building structure matters too. Spray foam adds significant structural strength to assemblies, which can be beneficial in some retrofits but problematic in older structures designed without consideration for this added rigidity.
Budget and Long-Term Performance
Budget constraints often affect the choice between foam types and application scope. Closed-cell foam typically costs 30-50% more than open-cell alternatives but provides superior moisture control and structural benefits.
Long-term maintenance considerations differ from traditional insulation. Spray foam typically lasts the life of the building without degradation, unlike some traditional materials that may settle or become damaged by moisture.
How Do I Use Spray Foam? | DIY Basics
Spray Foam in Different Climates and Building Types
Spray foam works effectively in all climates, but the appropriate type varies by region. The required thickness depends on the type of foam and local energy codes. Most applications require 2-3 inches of closed-cell foam or 4-5 inches of open-cell foam to meet minimum R-value requirements.
- Hot, humid climates require continuous vapor barriers to prevent moisture infiltration from exterior conditions.
- Mixed climate zones experience seasonal temperature and humidity variations that require careful moisture management.
- Cold climates benefit from continuous insulation that eliminates thermal bridging.
Consider your region’s predominant weather patterns and seasonal moisture conditions when selecting spray foam type.
Moisture Control and Mold Prevention with Spray Foam
Spray foam insulation significantly reduces moisture infiltration and mold growth when properly installed. Closed-cell spray foam creates an airtight barrier that prevents humid air from entering wall cavities, while open-cell foam provides moderate moisture resistance with superior breathability. This comprehensive analysis examines how different spray foam types interact with moisture, their mold prevention capabilities, and the critical installation factors that determine long-term performance.
Moisture infiltration occurs through air leaks, thermal bridging, and direct water penetration. Closed-cell spray foam addresses all three pathways by forming a continuous thermal and vapor barrier. Open-cell spray foam operates differently, allowing controlled moisture movement while preventing bulk water entry.

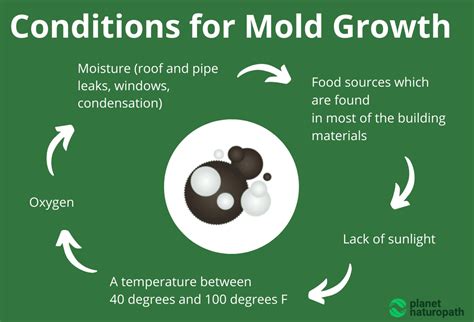

Mold requires three conditions: organic food sources, moisture, and temperatures between 40-100°F. The foam’s chemical composition resists organic breakdown, providing no nutritional value for mold spores.
Bonus Tip: Monitor humidity levels between 30-50% relative humidity after spray foam installation.
Installation Best Practices and Common Questions
The installation process directly impacts moisture control effectiveness. Foam applied at incorrect temperatures or thickness creates weak points where moisture can accumulate.
Surface Preparation and Adhesion
Surface preparation removes contaminants that prevent proper foam adhesion. Loose debris, oil residues, or existing moisture create weak bonds that allow air and moisture infiltration over time.
Bonus Tip: Schedule spray foam installation during stable weather conditions with moderate humidity levels.
Thickness Uniformity and Building Codes
Thickness uniformity ensures consistent thermal performance and prevents thermal bridging. Building codes and local regulations may restrict spray foam applications in certain areas. Some jurisdictions require fire barriers or specific ventilation systems when using spray foam insulation.
Existing Moisture Issues and Ventilation
Existing moisture problems require resolution before spray foam application. Installing foam over active water leaks or persistent humidity sources traps moisture and can exacerbate existing issues.
Spray foam’s air sealing properties may reduce natural ventilation rates below recommended levels. Home ventilation systems need evaluation when installing spray foam insulation. Mechanical ventilation systems ensure adequate fresh air exchange and maintain indoor air quality.
Installation Quality and Durability
According to Building Science Corporation data, closed-cell spray foam reduces air leakage by 50-90% compared to traditional insulation methods. Research from the National Institute of Standards and Technology demonstrates that spray foam insulation reduces overall building air leakage by an average of 75% when applied to exterior walls and attic spaces.
Temperature and humidity conditions during installation determine foam expansion and adhesion quality. Substrate temperatures below 60°F or above 90°F can compromise foam performance, creating gaps where moisture can accumulate.
How long does spray foam maintain its moisture resistance properties? Properly installed spray foam maintains performance characteristics for 20-30 years.
Will spray foam insulation eliminate the need for vapor barriers? Closed-cell spray foam functions as both insulation and vapor barrier, eliminating separate vapor retarder requirements in most applications.
How Do I Use Spray Foam? | DIY Basics
Addressing Specific Moisture Concerns
How effective is spray foam at preventing basement mold growth? Closed-cell spray foam applied to basement walls creates an effective moisture barrier that prevents humid outdoor air from entering the space.
Can existing mold problems be addressed with spray foam installation? Existing mold requires professional remediation before spray foam application. Once mold is properly removed and underlying moisture sources are eliminated, spray foam prevents future moisture infiltration that supports mold growth.
What happens if water gets behind spray foam insulation? Water infiltration behind spray foam indicates installation defects or structural issues that require immediate attention. Trapped moisture can cause substrate damage and create conditions for mold growth.
Spray foam insulation provides superior moisture control compared to traditional insulation materials when properly selected and installed. Evaluate your specific moisture challenges, climate conditions, and long-term performance goals when selecting spray foam solutions. Consider the total building system when implementing spray foam insulation. Moisture and mold concerns require professional evaluation and customized solutions that address your specific building conditions. Contact our experienced team to discuss your moisture control needs and explore spray foam solutions that protect your property.
How do I know if spray foam is working properly for moisture control? Monitor indoor humidity levels using digital hygrometers placed throughout the home.
