Soil moisture sensors are devices designed to measure the volumetric water content within the soil. Since directly measuring free soil moisture involves a labor-intensive process of sample removal, drying, and weighing, these sensors employ indirect methods. They utilize various soil properties, such as electrical resistance, dielectric constant, or neutron interaction, as proxies for moisture content. The correlation between the measured property and actual soil moisture requires calibration and can be influenced by environmental factors like soil type, temperature, and electrical conductivity.
Remote sensing applications, particularly in hydrology and agriculture, utilize the effect of soil moisture on reflected microwave radiation. Primarily, soil moisture sensors are understood as instruments that estimate the volumetric water content. One common type, known as capacitance sensors, uses an open capacitor formed by a large printed circuit board area integrated into an oscillating circuit.
Another method involves the galvanic cell principle, where the voltage produced by the soil, acting as an electrolyte, indicates the amount of water present. This is because water can facilitate the production of electricity.
The accurate measurement of soil moisture is crucial for agricultural practices, enabling farmers to optimize irrigation and conserve water resources. In urban and suburban settings, soil moisture sensors are integrated with irrigation controllers for landscapes and residential lawns. When connected to a basic irrigation timer, a soil moisture sensor transforms it into a "smart" irrigation controller, preventing unnecessary watering cycles when the soil is already sufficiently moist, such as after rainfall.
Beyond agricultural and landscape management, soil moisture sensors find application in various research endeavors. Relatively inexpensive and simple devices that do not require a power source are available for assessing whether plants have adequate moisture to thrive.
Defining Soil Moisture

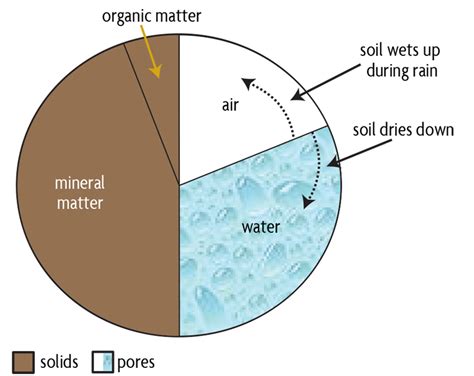

The definition of soil moisture can be complex and varies across different disciplines. A farmer's understanding of soil moisture may differ significantly from that of a water resource manager or a weather forecaster. Generally, however, soil moisture refers to the water held within the pore spaces between soil particles.
Quantifying Soil Moisture
Several terms are commonly used to describe how soil moisture is quantified. Soil water potential, also known as soil moisture tension, measures the force with which water is held by the soil. It is typically expressed in units of pressure, such as bars (where one bar is equivalent to the pressure of one atmosphere).
Plant available water (PAW) represents the quantity of water in the soil that is accessible to plants. This range is defined between the soil's field capacity (the soil water content after excess gravitational water has drained) and its permanent wilting point (the soil water content at which most plants can no longer recover from wilting). Understanding PAW is vital because irrigation should ideally occur within this range, based on the amount of PAW that can be depleted without negatively impacting plant growth and development.
Online hydraulic properties calculators can be valuable tools for estimating PAW in different soil types. These calculators typically require users to input the percentages of sand and clay in their soil.
Methods and Devices for Measuring Soil Moisture
A wide array of tools is available for determining soil moisture, with many being specifically employed for irrigation management. The following devices are commonly used:
Tensiometers
Tensiometers are devices that measure soil moisture tension. They consist of a sealed, water-filled tube with a porous ceramic tip at the bottom and a vacuum gauge at the top. When inserted into the soil at the root zone depth of plants, water moves between the ceramic tip and the surrounding soil until equilibrium is achieved. The moisture tension is then registered on the gauge. Tensiometer readings provide an indication of water availability in the soil. These devices function best at soil moisture tensions close to field capacity and require servicing if they dry out.
Electrical Resistance Blocks (Gypsum Blocks)
Electrical resistance blocks, also known as gypsum blocks, measure soil water tension. They comprise two electrodes embedded within a porous material, typically gypsum. Lead wires connect the electrodes to a portable meter at the soil surface. As water moves into or out of the porous block in response to the surrounding soil moisture, changes in the electrical resistance between the electrodes occur. Readings from the resistance meter are converted to water tension using a calibration curve. Gypsum blocks can operate over a broader range of soil moisture tensions than tensiometers but are prone to deterioration over time and may need annual replacement. While individual blocks are inexpensive, the associated meter can be a significant cost.
Granular Matrix Sensors
Granular matrix sensors are a more recent development, similar to gypsum blocks but with improved resistance to degradation.
Time Domain Reflectometry (TDR)

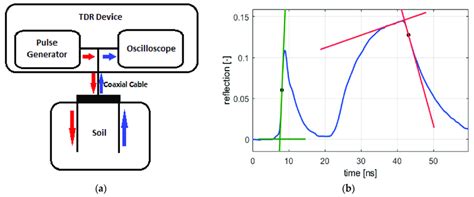

Time Domain Reflectometry (TDR) is a modern technique that measures soil water content. It involves sending an electrical signal through steel rods inserted into the soil and analyzing the return signal. Wet soil causes the signal to return more slowly than dry soil. TDR sensors offer fast and accurate readings of soil water content with minimal maintenance requirements. However, interpreting TDR data can be more complex and may necessitate specific calibration based on soil characteristics.
Capacitance Sensors
Capacitance sensors operate by measuring the dielectric permittivity of the soil, which is directly related to its water content. These sensors are part of an oscillating circuit and use an open capacitor, often formed by a large printed circuit board area, to interact with the soil.
Moisture Meters for Practical Use
A moisture meter is a practical tool for measuring soil moisture levels, eliminating the guesswork often involved in watering plants. This helps prevent common issues like overwatering or underwatering, both of which can be detrimental to plant health and garden vitality.

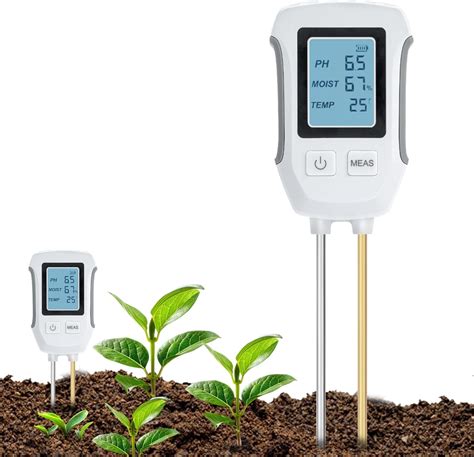

Moisture meters typically feature a probe or sensor that is inserted into the soil. The tool measures the soil's electrical resistance or dielectric constant, which correlates to the amount of moisture present. To ensure accurate readings, several factors should be considered:
- Soil Type: The performance of a moisture meter can vary depending on the soil composition. For instance, in sandy soils, the probe may need to be inserted deeper, while in clay soils, shallower measurements might suffice due to slower drainage.
- Depth of Measurement: Some meters only measure surface moisture, while others can assess deeper soil layers where plant roots are located. It is important to choose a meter that can measure at the appropriate depth for the plants in question.
To obtain a more accurate assessment, it is recommended to take multiple measurements in different areas of the garden or raised beds after inserting the probe fully into the soil at the plant's root zone. The meter's display will then indicate whether the soil is dry, moist, or wet, allowing for adjustments to watering schedules.
Regular monitoring with a moisture meter is essential, especially as weather conditions change. It is also advisable to avoid taking measurements under direct sunlight, as this can lead to inaccurate readings.
Integrating Moisture Meters with Smart Irrigation Systems

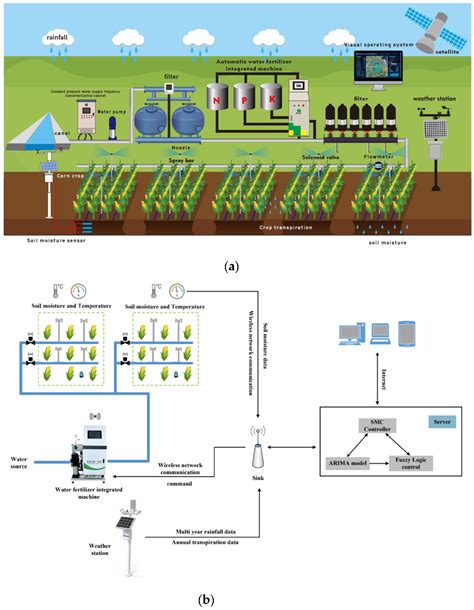

Pairing a moisture meter with an intelligent drip irrigation system is a highly effective strategy for optimizing watering across various soil types. Many modern irrigation systems offer moisture-based automation and feature built-in sensors for real-time soil moisture monitoring.
The process typically involves:
- Selecting a drip irrigation system that supports moisture-based automation.
- Positioning drip irrigation lines to deliver water directly to the plant's root zone.
- Inserting the moisture meter or integrated sensor into the soil near the plant roots.
- Connecting the moisture meter or sensors to the irrigation controller.
Smart irrigation systems often allow users to set thresholds. When soil moisture drops below a predetermined level, the system automatically initiates watering via drip irrigation. This continuous monitoring and automated adjustment eliminate the need for manual checking and guesswork.
Comparison of Soil Moisture Sensing Technologies
A broad spectrum of technologies exists for measuring soil moisture, including TDR, FDR, capacitance, and resistance-based sensors. While the term "soil moisture sensor" can be applied broadly, it's important to distinguish between measuring water content (the amount of water) and water potential (the energy state of water).
Water Content vs. Water Potential

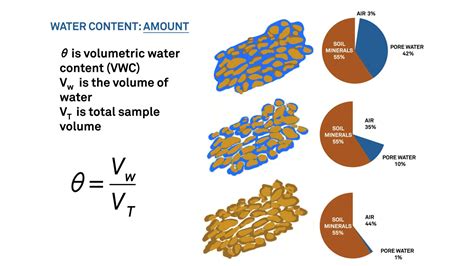

Water content can be expressed by weight or volume. Volumetric water content (VWC) refers to the volume of water in a given volume of soil. Water potential, on the other hand, describes how tightly water is held by soil particles, influencing its availability for plants and its movement within the soil. This binding force increases as soil water content decreases.
Resistance Sensors
Resistance sensors are based on the principle that water, containing ions, conducts electricity. The idea is that increased water content leads to decreased electrical resistance between two electrodes. However, this method relies on the assumption that the number of ions in the soil remains relatively constant, which is often not the case due to variations in salinity, fertilizer application, and soil type. Consequently, resistance sensors are generally considered suitable only for home gardening and science fair projects due to their susceptibility to these confounding factors.
Dielectric Sensors (TDR, FDR, Capacitance)

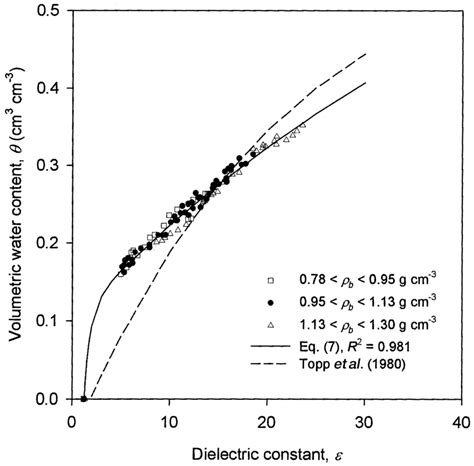

Dielectric sensors, including TDR, FDR, and capacitance types, measure the charge-storing capacity of the soil, known as its dielectric constant. Different soil components (solids, liquids, and gases) have distinct dielectric constants. Water has a significantly higher dielectric constant compared to soil minerals, air, and gases. As the water content in soil changes, the overall dielectric constant of the soil mixture varies accordingly.
While dielectric sensors are less susceptible to salinity issues than resistance sensors, their accuracy can still be affected by factors such as soil bulk density, soil type, salinity, clay content, and sensor-to-soil contact. However, many advanced dielectric sensors incorporate technologies to mitigate these challenges. The performance of dielectric sensors can also depend on their measurement frequency and circuit design. Higher frequencies generally yield more reliable data but often come at a higher cost.
Time-Domain Reflectometry (TDR)
TDR sensors measure the travel time of an electrical energy wave along a transmission line, which is related to the soil's charge-storing capacity and VWC.
Frequency Domain Reflectometry (FDR) and Capacitance Sensors
FDR and capacitance sensors are also dielectric-based technologies that measure the soil's dielectric properties to estimate water content.
Choosing the Right Soil Moisture Sensor
Selecting an appropriate soil moisture sensing method depends heavily on the specific application. For research purposes, reliable data collection and visualization are paramount. Systems that offer ease of deployment, minimal maintenance, and near-real-time data access can significantly streamline research workflows.
While a wide variety of water content sensors are available, including TDR, FDR, capacitance, and resistance types, choosing one for specific measurement needs can be simplified by understanding their underlying principles and limitations. Resistance-based techniques, despite their low cost, often yield unreliable results due to fluctuating soil salinity. Dielectric-based sensors (TDR, FDR, capacitance) offer a more robust solution, but careful consideration of factors like installation quality, measurement frequency, and circuit design is crucial for ensuring accuracy.
Studies indicate that sensor performance is more closely tied to proper installation and individual sensor characteristics rather than the specific measurement technology itself. In general, higher-frequency measurements tend to produce higher-quality data, albeit at a greater expense.
