When embarking on drywall projects, particularly for ceilings, understanding the specific requirements and material options is crucial. This article delves into the properties and applications of 5/8" moisture-resistant drywall, addressing common challenges and highlighting key product features.
Ceiling Installation Considerations
For ceiling installations, especially where trusses are spaced 24 inches on center, local building codes may mandate the use of 5/8" Type X fire-rated drywall, often referred to as Firerock. While this fulfills fire safety requirements, a common dilemma arises when planning for bathrooms, where moisture resistance is paramount.
Moisture-Resistant Drywall Options for Bathrooms
In bathrooms, the planned use of 5/8" moisture-resistant drywall for ceilings faces availability challenges, with this thickness often limited to 1/2" in many regions. While exhaust fans help manage humidity, the question remains whether standard 5/8" drywall would suffice without dedicated moisture-resistant properties. Sourcing 5/8" M.R. (Moisture Resistant) rock might require significant travel, for instance, a 70-mile drive.
Paperless Drywall Solutions
An alternative that addresses moisture concerns effectively is Densarmor paperless board, which is available in 5/8" thickness. This option is highly preferred for moist areas because its paperless construction eliminates a potential food source for mold and mildew growth.
Mitigating Sagging in Moisture-Resistant Drywall
To minimize the risk of sagging, especially with heavier drywall types or in humid environments, installing strapping perpendicular to the joists is a recommended practice. This provides an additional layer of support to which the moisture-resistant drywall can be attached.
Achieving Fire Ratings with 1/2" Drywall
For areas where 5/8" moisture-resistant drywall is unavailable, achieving a longer fire rating with 1/2" drywall is possible by using two layers. It is essential to offset the joints between the layers. The first layer should start with a half sheet against the wall, and the subsequent layer can then utilize a full sheet. This method, often referred to as using two layers of 1/2" WR (Water Resistant) drywall, can provide adequate protection.
Key Features of Moisture-Resistant Drywall Products
Various manufacturers offer specialized drywall products designed for enhanced moisture and mold resistance. These products often share common construction and performance characteristics.

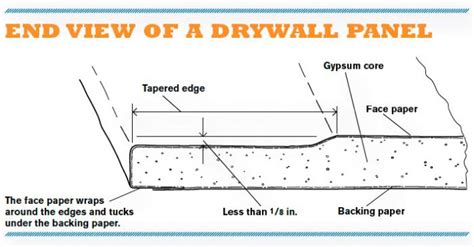

Product Construction and Design
- Face Paper Reinforcement: The face paper is folded around the long edges to reinforce and protect the core.
- Edge Finishing: The ends are square-cut and finished smooth.
- Tapered Edges: Long edges of the panels are tapered, which allows for the reinforcement and concealment of joints with appropriate joint treatment systems.
Specific Product Examples and Benefits
XP Gypsum Board (Gold Bond)
XP Gypsum Board features PURPLE® paper on the face side and a heavy, mold- and moisture-resistant, 100% recycled gray paper on the back side. This design helps protect projects from mold.
XP Fire-Shield C Gypsum Board
This product consists of a specially treated, fire-resistant, Type C gypsum core, providing additional fire resistance ratings when incorporated into tested systems. It is UL Classified for fire resistance and surface burning characteristics, as well as non-combustibility. The gypsum core itself will not support combustion and will only begin to calcine at temperatures greatly exceeding 212°F (100°C), a slow process.
Gold Bond® XP® Gypsum Board
For applications not requiring UL fire-rated designs, Gold Bond® XP® Gypsum Board with a 1/2” regular core is an option.
Sheetrock® Brand Mold Tough® Panels Firecode® X
These 5/8 in. (15.9 mm) Type X panels feature a noncombustible, moisture-resistant gypsum core encased in moisture- and mold-resistant, 100% recycled green face and brown back papers. They meet or exceed ASTM C1396 specifications when tested according to ASTM D3273 for resistance to mold growth. The UL Type Designation is printed on the face along the long edge for easy identification by building inspectors. These panels are UL Classified for fire resistance and can be used in any UL Design where Type SCX panels are listed.
CertainTeed M2Tech Moisture & Mold Resistant Drywall
M2Tech Drywall is formulated to resist mold and mildew, even in high-humidity environments. It is made with a unique combination of water-resistant materials and features a special paper facing treated for mold and mildew resistance. Its unique combination of materials makes it highly water-resistant and resistant to fungal growth.
How To Install Drywall (The Right Way)
Advantages of Advanced Drywall Technologies
- Mold, Mildew, and Moisture Resistance: These products help inhibit mold growth, achieving the highest possible scores on mold tests (ASTM D3273 and ASTM G21). They exhibit less than 5% water absorption per ASTM C473 and often feature technologies like SPORGARD® for extra mold-inhibiting properties.
- Additional Fire Resistance: Products with a Type C core offer enhanced fire resistance compared to ordinary wallboard and are approved components in UL fire-rated designs.
- Fast and Easy Installation: Features like GridMarX guide marks on the board facilitate faster and more accurate installations. Optimized fastener patterns (e.g., MaX 12®, MaX 16®) can achieve 1-hour fire ratings with fewer fasteners, saving time and money. The boards score and snap easily, require no special handling, and are lightweight and cost-efficient.
- Low-Emitting Materials: Many of these products qualify as low-VOC emitting materials, meeting stringent indoor air quality standards like California Specification 01350 and achieving UL GREENGUARD Gold Certification.
Applications of Moisture-Resistant Drywall
Moisture-resistant drywall is suitable for a variety of applications in both residential and commercial construction.
Interior Wall and Ceiling Applications
These boards are recommended for use in both wood- and steel-framed construction for interior wall and ceiling applications.
Specific Area Recommendations
- As a tile backer in dry areas or areas with limited moisture, such as toilet or sink areas.
- For wall and ceiling areas above tile in tubs and showers.
- Approved for use in exterior soffit applications.
- For use in specific fire-rated assemblies.
Understanding Fire Resistance Ratings
It is important to consult the Fire and Safety Information for a comprehensive explanation of how fire resistance ratings are determined and applied. Products are often UL Classified for fire resistance, surface burning characteristics, and non-combustibility.
