A significant advancement in wound care involves the use of fish skin grafts, an innovative treatment derived from the skin of North Atlantic cod. This novel approach offers a promising alternative to traditional methods, particularly for deep dermal and extensive burns, as well as chronic wounds.
Understanding Fish Skin Grafts

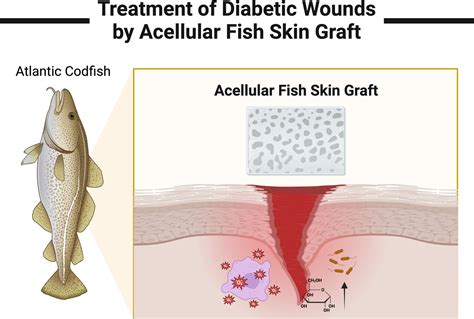

Acellular fish skin grafts are a relatively new option in the treatment of burns and other complex wounds. The process involves utilizing intact skin from North Atlantic cod (Gadus morhua), which is then processed using a proprietary method. This method preserves the skin's natural structure and its rich composition of lipid components, most notably omega-3 fatty acids.
Previous investigations have highlighted the therapeutic potential of omega-3 polyunsaturated fatty acids, suggesting that they can effectively reduce inflammatory responses and promote the release of proinflammatory cytokines that are crucial for wound healing. By facilitating the transition out of the inflammatory phase, fish skin grafts can actively accelerate the overall wound healing process.
The Science Behind Fish Skin Grafts
Fish skin and human skin share several fundamental properties, including the presence of fats, proteins, elastin, and glycans. These components are vital for skin's ability to stretch, maintain its structure, and repair itself. The omega-3 fatty acids found in fish skin grafts are particularly beneficial, as they are known to possess anti-inflammatory properties that can aid in the healing cascade.
When applied to a wound, the fish skin graft acts as a natural scaffold. Surrounding human cells can grow into this scaffold, initiating the process of regeneration. Over time, some of the fish skin cells can transform into human skin cells, effectively integrating the graft and promoting the growth of new, healthy skin tissue.

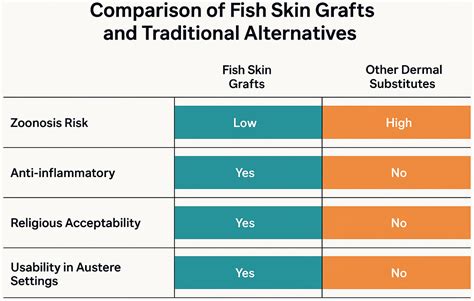

Benefits of Fish Skin Grafts
The adoption of fish skin grafts is linked to numerous benefits for patients, including:
- Reduced Pain: Many patients report experiencing less pain after the application of fish skin grafts compared to traditional treatments.
- Faster Healing: The regenerative properties of the grafts can significantly accelerate the wound healing process.
- Low Risk of Side Effects: Complications such as infections are rare, and the risk of viral transfer from the fish skin to humans is virtually non-existent due to the processing method.
- Cost-Effectiveness: Fish skin is readily available, and the grafts are relatively inexpensive to produce, making them an accessible treatment option.
- Improved Scar Quality: Studies have shown that fish skin grafts can contribute to the development of stable, pliable skin with good elasticity, minimizing the tendency for scars to shrink or contract.
Clinical Applications and Procedures
Fish skin grafts are proving to be a valuable tool in managing various types of wounds, especially deep dermal and partial subdermal thermal injuries, as well as small, clear third-degree thermal injuries that have undergone necrectomy.
Grading of Thermal Injuries and Graft Application
Thermal injuries are typically divided into four grades:
- Grade I: Affects only the epidermis, healing without lasting consequences.
- Second-degree: Involves blisters and damage to the dermis, potentially leading to texture disorders or scarring.
- Third-degree: Affects the entire dermis and extends into the subcutis, requiring surgical intervention for healing and always resulting in scars.
- Fourth-degree: Damages tissue, including neighboring structures like muscles, tendons, and bones, necessitating surgical treatment or reconstruction.
Fish skin grafts play a significant role in the treatment of second-degree burns and smaller third-degree defects, offering a less invasive alternative to extensive skin grafting.
The Procedure
The procedure for applying a fish skin graft is similar to traditional skin grafting techniques:

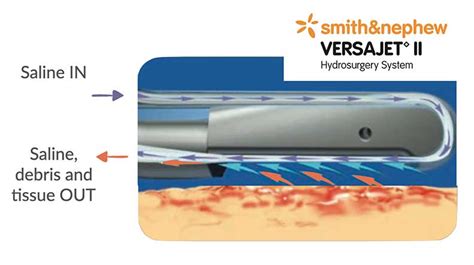

- Wound Preparation: The wound area is meticulously debrided to remove dead tissue. This is often done using hydrosurgery, such as the Versajet system, which precisely removes necrotic tissue while preserving viable tissue.
- Graft Application: The acellular fish skin graft, soaked in saline solution, is then applied to the prepared wound bed. It may be meshed to cover larger areas and is secured with staples or sutures.
- Dressing and Maintenance: Depending on the wound size and type, the graft is either kept moist using specific wound coverings or allowed to dry, serving as a carrier for cell integration. Dressings are typically changed every 2-3 days, often in an outpatient setting, allowing for relatively painless follow-up care.
Patient Selection and Exclusion Criteria
While fish skin grafts offer broad applicability, certain criteria guide their use. Exclusion criteria typically include wounds that are too superficial, a known fish allergy, or excessively large burn areas (e.g., >15%KOF, III°) where conventional methods like Integra might be more suitable for faster healing. The primary goal is always to ensure patient safety and optimize wound healing without undue risk.
Clinical Follow-Up and Assessment Tools
A crucial aspect of evaluating the efficacy of fish skin grafts involves rigorous clinical follow-up and the use of specialized assessment tools. This ensures a comprehensive understanding of scar quality, patient satisfaction, and overall treatment outcomes.
DermalabCombo® Skin Analysis
The DermalabCombo®, a skin testing device developed in Denmark, plays a key role in standardizing the assessment of skin properties. It employs two established technologies:
- Ultrasound Skin Analysis: This method uses high-frequency ultrasound (20 MHz) to create detailed images of the skin's layers-epidermis, dermis, and subcutis. It can quantify skin thickness and detect variations in tissue composition, providing insights into the skin's structure and health. The device also provides "curve" measurements that represent skin thickness and can reveal patterns indicative of diseased or aged skin.
- Skin Elasticity Measurement: This involves applying controlled negative pressure to the skin surface to measure how the skin lifts and retracts. Key parameters assessed include:
- Young's Modulus of Elasticity (E): Characterizes the stiffness of the skin.
- Skin Retraction Time (R): Measures the time taken for the skin to retract after being stretched.
- Viscoelasticity (VE): A combined parameter reflecting both lifting and retraction phases.
These measurements are performed on the treated area and compared to healthy skin on the opposite side of the body to objectively evaluate the quality and elasticity of the healed skin over time.
Patient and Observer Scar Assessment Scale (POSAS)
In addition to objective measurements, the Patient and Observer Scar Assessment Scale (POSAS) is used to gather subjective and objective feedback on scar quality. This assessment involves both the patient (or their parents) and the examining clinician independently evaluating various aspects of the scar, including vascularity, pigmentation, thickness, relief, smoothness, extent, pain, and itching. Scores are awarded on a scale, providing a comprehensive view of the scar's impact on the patient's quality of life.
Case Study Insights
Early clinical experiences with fish skin grafts have been highly encouraging. For instance, in one study involving 20 pediatric patients, the average age was 8 years. Following wound debridement and the application of acellular fish skin grafts, 60% of patients were discharged on the same day. All patients demonstrated rapid and infection-free wound healing, with approximately 95% wound surface coverage achieved within an average of 26 days. The surgical procedure was generally brief (average 34 minutes) and free of complications or allergic reactions. Subsequent dressing changes were noted to be virtually painless, significantly reducing patient trauma.
Long-term follow-up, extending up to two years, confirmed the development of stable, pliable skin with good elasticity in all patients. This outcome was consistently validated by both elasticity measurements and ultrasound imaging. Antibiotic coverage was only necessary for a small percentage of initially infected wounds, and standard post-healing treatments like compression therapy and silicone applications were consistently applied.
The Kerecis Story: From Byproduct to Breakthrough
The development and widespread adoption of fish skin grafts are significantly attributed to companies like Kerecis, an Icelandic biotech firm. Initially met with skepticism, Kerecis invested heavily in rigorous clinical trials that demonstrated the efficacy of their fish skin grafts, transforming doubt into scientific acceptance.
Kerecis's technology utilizes intact fish skin, providing a natural scaffold that promotes cell growth and accelerates healing, making it particularly effective for challenging wounds such as diabetic foot ulcers, pressure ulcers, and traumatic injuries. The company's commitment to intellectual property, with patents secured in multiple countries, played a crucial role in its global growth and market penetration. This strategic approach not only protected their innovation but also provided credibility for attracting investment and forming partnerships.
In a significant milestone, Kerecis was acquired by the Danish medical giant Coloplast in 2023 for over USD 1 billion, underscoring the transformative potential and commercial success of this innovative wound care solution. The Kerecis journey exemplifies how intellectual property can empower startups from smaller nations to compete on a global scale, ultimately changing the standard of care for patients worldwide.
Kerecis's success highlights that fish skin grafts are not just a product but a catalyst for changing how severe wounds and burns are treated, offering a new standard of care with reduced pain, faster healing, and a low risk of complications.
