A ground moisture barrier is an essential component when installing floors or walls in areas prone to dampness or excess moisture, such as basements, ceilings, or crawl spaces. Concerns about ground moisture in a home are well-founded, as it can lead to problems that are costly to both your wallet and your health. One of the most well-known dangers is the development of mold, which is born from moisture in the ground. However, numerous other factors contribute to the risks associated with ground moisture.
Problems typically arise when the ground consists of porous materials like wood and soil. The presence of these elements creates an ideal environment for moisture to become trapped within your home's infrastructure. This can result in infestations of fungi, molds, mildews, and pests, which can then spread throughout the entire house, causing significant damage.
During prolonged dry periods, soil shrinks and contracts. Earthquakes can exacerbate existing cracks in foundations. While ventilating a crawl space can be a challenging task, it is ultimately a worthwhile endeavor. For homes vulnerable to humid climates, crawl space encapsulation offers a superior solution. Even in dry climates, sealing a crawl space can contribute to energy savings.
Understanding the Threat of Ground Moisture

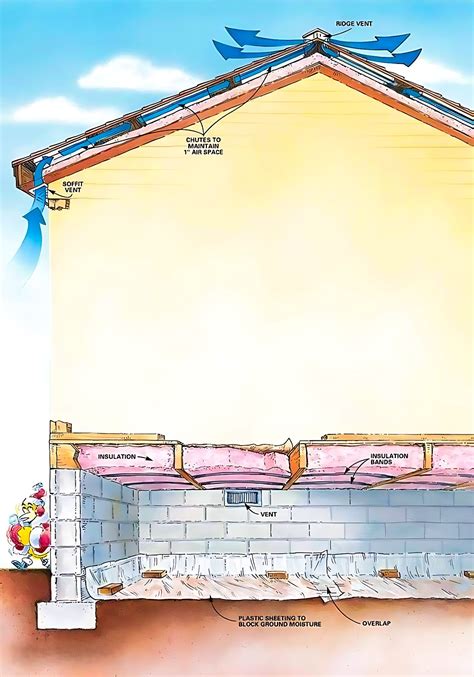

Moisture is a common issue in vented crawl spaces, particularly in regions with hot, humid summers and significant rainfall in spring and fall. Many homes, especially older ones, are built with dirt crawl spaces that are vented. Depending on the age of the home, the existing moisture barrier might be a simple sheet of plastic laid on the ground or may be absent altogether.
The combination of moisture from the ground and from crawl space vents creates various problems beneath a home. This moisture can foster the growth of mold, mildew, and dry rot, and provides a conducive environment for insects and other pests to thrive. A vapor barrier is a crucial step in mitigating this moisture problem.
Signs of excess moisture under a home can include efflorescence on foundation walls or standing water in the crawl space. Efflorescence appears as white or chalky marks, indicating that moisture is penetrating the foundation walls. This can stem from exterior drainage issues, excessive standing water, or other moisture sources. While excessive water might necessitate additional measures like a dehumidifier or sump pump, or the correction of drainage problems, addressing the vapor barrier is the foundational first step in any solution.
The Role and Function of a Vapor Barrier
A properly installed vapor barrier effectively prevents moisture from the ground from migrating into floor joists, insulation, sub-flooring, and other materials within a crawl space. As the ground becomes saturated during rainfall, moisture moves through the soil like a sponge, eventually contacting the area beneath your home.
When to Install or Replace a Vapor Barrier
If your current vapor barrier is old, torn, missing in sections, or degraded, it is likely time to install a new one. Additionally, if your home was constructed without a vapor barrier, installing one is a significant first step toward controlling moisture infiltration.
Proper Installation Techniques

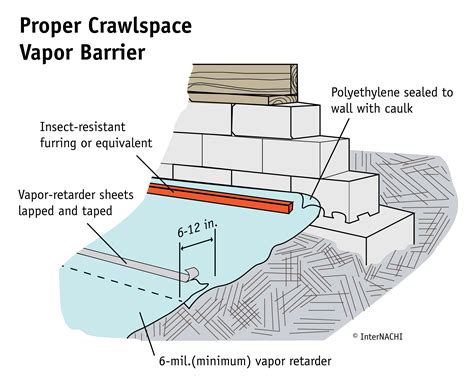

A correctly installed crawl space vapor barrier should be overlapped and taped to eliminate any gaps in coverage. The plastic sheeting is cut to extend to the edge of the walls and around the footings and piers beneath the home. Standard installations typically involve overlapping seams by at least 12 inches and taping each seam. The edges along walls and around piers are generally not attached in a standard vapor barrier setup.
Current building codes often specify a minimum thickness of 6 mil for vapor barriers. However, a thicker 15 mil plastic liner generally performs better and is less susceptible to damage during maintenance or access to the crawl space.
Sealed Vapor Barriers: Enhanced Protection
A sealed vapor barrier utilizes the same heavy-duty 15 mil plastic liner as a standard vapor barrier. However, in a sealed system, the plastic liner is affixed to the foundation walls, and individual footings are wrapped. The liner extends up the piers and foundation walls to block moisture from entering the crawl space. A small gap is intentionally left between the top of the vapor barrier and the home's sill board to allow for future inspections, commonly for pest inspections as required by building codes.
A sealed vapor barrier offers enhanced protection against moisture infiltration into the crawl space. For homes experiencing excessive moisture problems indicated by standing water, efflorescence, mold growth, or puddles, a sealed vapor barrier is often recommended as a comprehensive solution.
Vapor Barrier Materials and Considerations
High-quality vapor barriers often employ thick, cross-woven polyethylene materials specifically designed and reinforced for crawl space applications. These materials are typically odorless, do not off-gas once installed, and may feature a white top finish to brighten the crawl space. For minimum code requirements, standard black plastic sheeting might be used, but thicker materials like 15 mil are strongly recommended for a longer lifespan and better protection.
Types of Crawl Space Vapor Barriers
- Polyethylene: A common and affordable plastic offering excellent moisture resistance. Available in various thicknesses (mils), with 6, 10, and 20 mil being the most common. A minimum of 10 mil is often recommended for optimal protection.
- Reinforced Polyethylene: Standard polyethylene enhanced with an added layer of fabric or mesh grid reinforcement. This significantly improves strength, tear resistance, and durability, making it more robust against punctures.
- Other Materials: While less common, EPDM rubber and chlorinated polyethylene (CPE) are also available, though they may sometimes emit odors. Polyethylene has proven to be remarkably durable for crawl space ground cover.
Key Factors When Choosing a Vapor Barrier
- Thickness (Mil): Ranging from 6 mil to 20 mil, thicker options offer greater durability and puncture resistance. A professional assessment can help determine the appropriate thickness for your specific needs.
- Coverage Area: Accurately measure the square footage of your crawl space to ensure sufficient material and minimize waste. Factor in extra for overlaps.
- Code Compliance: Ensure the chosen vapor barrier meets local building code requirements, such as those outlined in the International Residential Code.
- Budget: Prices vary based on thickness, size, and reinforcement. Determine your budget to select the best option.
- Product Warranty: Look for products with robust warranties (10 years to lifetime) for added peace of mind.
Installation and Additional Moisture Control
While DIY installation is possible, working with experienced waterproofing contractors ensures correct installation, maximizing effectiveness and preserving warranties. Proper installation involves securing the vapor barrier with fasteners, meticulously sealing all seams and penetrations, and overlapping panels by at least 12 inches for complete coverage.
In cases of significant moisture, a sump pump may be recommended as part of a comprehensive moisture control system to remove accumulating water from the crawl space. Addressing moisture problems swiftly is crucial, as cumulative damage can lead to serious structural issues over time.
What is a Crawl Space Vapor Barrier and Why is it Important?
Benefits of Crawl Space Vapor Barriers
Installing a high-quality vapor barrier in your crawl space provides numerous benefits:
- Moisture Protection: Blocks ground moisture from rising into your crawl space, reducing the risk of mold and mildew.
- Improved Air Quality: Prevents moisture-related issues that contribute to poor indoor air quality.
- Structural Protection: Guards against wood rot and other moisture-induced damage to your home's structure.
- Energy Efficiency: By keeping the crawl space dry, vapor barriers help improve insulation performance and can lower energy costs.
- Pest Prevention: Reduces the damp environment that attracts pests.
Even in dry climates, installing a vapor barrier is beneficial, as the ground retains moisture. Studies have shown significant energy savings in homes with sealed crawl spaces, indicating a drastic reduction in moisture infiltration.
