The design of energy-efficient, comfortable, and long-lasting buildings necessitates a comprehensive understanding of the various barriers that protect the building envelope from air, water, condensation, movement, and energy loss. These critical components work together to ensure the integrity and performance of a structure.
The Role of Barriers in Building Envelopes
Restrictive barriers are essential for protecting the building envelope. They are designed to achieve several key functions:
- Air: Prevent excessive air infiltration.
- Water: Resist liquid water penetration.
- Condensation: Resist condensation within the wall system.
- Movement: Accommodate differential movement caused by moisture, seasonal or daily temperature shifts, and structural movement.
- Energy conservation: Resist thermal transfer through convection, conduction, and radiation.
Air Barriers: The First Line of Defense Against Air Leakage
Air barriers form a continuous plane around a structure to stop uncontrolled air movement in and out of the building envelope. Air leakage can account for significantly more moisture infiltration than diffusion. A high-quality air barrier limits heat losses and gains through convection, conduction, and radiation.
Understanding Air Permeance vs. Air Leakage
When tested according to ASTM E 2178, an air barrier's air permeance should not surpass 0.02 L/(s·m²) at a pressure difference of 75 Pa. Air permeance represents the amount of air that moves through a material. In contrast, air leakage flows through holes and gaps.
Why Building Envelopes Need Air Barriers
Air barriers regulate the indoor climate by stopping airflow between the exterior and interior of a building. This prevents air-transported moisture from flowing into the interior of a wall system. Controlling air and preventing moisture infiltration leads to:
- Reduced building energy usage, saving money and protecting the environment.
- Minimized moisture in the wall cavity, preventing the growth of structurally damaging rot and mildew.
- Improved indoor air quality by preventing the growth of unhealthy mold.
- Enhanced occupant comfort and productivity by stabilizing temperatures and eliminating drafts.
Types and Standards of Air Barriers
Builders often install air barriers on the external side of the wall assembly. Quality air barriers provide continuity, structural support, air impermeability, and durability. Types of air barriers include:
- Permeable and impermeable air barriers
- Spray foam barriers
- Mechanically adhered sheet membranes
- Self-adhered sheet membranes
- Fluid-applied membranes (including spray and roll-applied products)
For commercial buildings, Section C402.5.1 of the 2021 International Building Code (IBC) demands a continuous air barrier, except in climate zone 2B. For residential structures, Section R402.4.1.1 of the 2021 International Residential Code (IRC) mandates a continuous air barrier in the building envelope, with sealed breaks for joints.
Moisture Barriers: Protecting Against Water Intrusion
Moisture barriers, also known as water/weather resistant barriers, are applied over the exterior sheathing in residential construction and are usually vapor-permeable to prevent trapping moisture vapor in the wall cavity. Waterproofing membranes are used in below-grade construction to protect the foundation from moisture.
Above-Grade and Below-Grade Moisture Barriers
Above-grade moisture barriers seal against water infiltration, protecting the building envelope's integrity and improving occupant safety and comfort. They provide waterproofing, reduce moisture and condensation in the wall cavity, limit exposure to moisture that can decrease thermal efficiency, prevent pests, and protect against hydrostatic pressure.
Below-grade moisture barriers, typically sheet or liquid-applied membranes, are installed on foundation walls to prevent moisture infiltration from the ground. A polyethylene moisture barrier over exposed dirt in crawl spaces also helps manage moisture infiltration.
Waterproofing Membrane Types
Manufacturers offer various waterproofing membranes, commonly including:
- Liquid-applied waterproofing membranes: Polyurethane, EPDM, Polymer-modified bituminous membranes.
- Sheet-based membranes: EPDM sheets, Self-adhesive modified bituminous membranes, Polymer-modified bitumen membranes.
Moisture Barrier Standards
The 2021 IRC R406 and the 2021 IBC 1805 specify conditions requiring waterproofing or damp proofing, mandating it in areas with severe soil water and high water table conditions. Damp proofing is required from the top of the footing to the finished grade for concrete or masonry below-grade walls retaining earth.

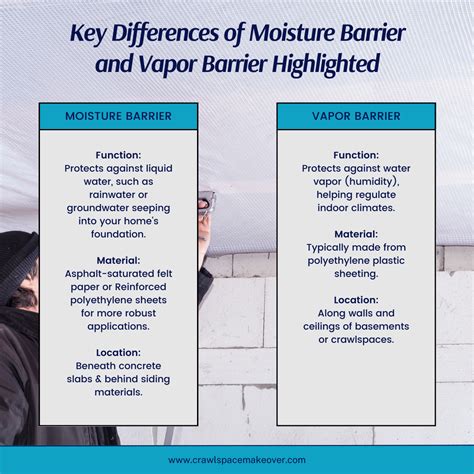

Understanding Moisture Movement: The Science Made Simple

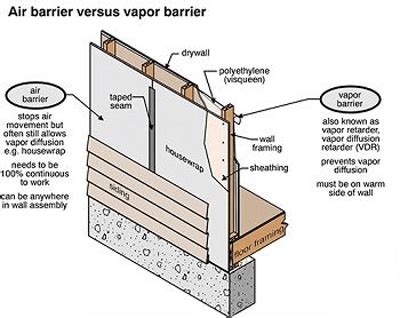

Vapor Barriers: Controlling Water Vapor Diffusion
Vapor barriers dampproof a structure to combat moisture and prevent water vapor inside the building from moving throughout the structure and permeating walls and insulation. While the older term "vapor barrier" is still used, "vapor retarder" is more accurate, as these materials reduce, rather than completely block, the rate of water vapor movement.
Waterproofing vs. Dampproofing
Waterproofing treats a structure to resist water intrusion under hydrostatic pressure, while dampproofing resists water intrusion without hydrostatic pressure.
Understanding Permeability (Perms)

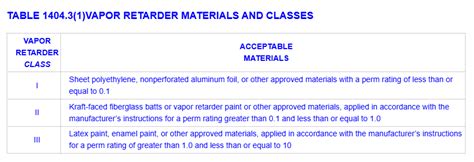

The ability of a material to retard the diffusion of water vapor is measured in units known as "perms" or permeability. The International Residential Code describes three classes of water vapor retarders:
- Class I vapor retarders (0.1 perms or less): Glass, sheet metal, polyethylene sheet, rubber membrane.
- Class II vapor retarders (greater than 0.1 perms and less than or equal to 1.0 perms): Unfaced expanded or extruded polystyrene, 30-pound asphalt coated paper, plywood, bitumen coated kraft paper.
- Class III vapor retarders (greater than 1.0 perms and less than or equal to 10 perms): Gypsum board, unfaced fiberglass insulation, cellulose insulation, board lumber, concrete block, brick, 15-pound asphalt coated paper, house wrap.
A material's water vapor transmission rate, or permeance, is determined by methods like the ASTM E96 desiccant method. Type 1 vapor barriers are very restrictive (permeance ≤ 15 ng/(Pa·s·m²)), while Type 2 vapor barriers are for ordinary conditions (permeance ≤ 60 ng/(Pa·s·m²)).
Why Building Envelopes Need Vapor Barriers
Vapor barriers are needed in buildings prone to direct contact with water. They help to:
- Keep air from leaking out of the building.
- Reduce building energy usage.
- Improve occupant comfort.
- Enhance indoor air quality.
Above-Grade and Below-Grade Vapor Barriers

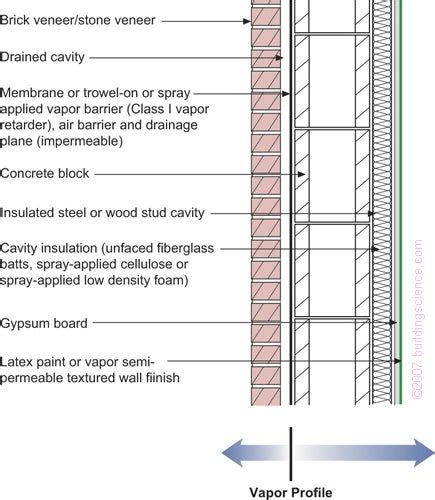

Above-grade vapor barriers are typically recommended on the side of the wall experiencing more hot and moist conditions-the inner surface in cooler climates and the outer surface in humid, hot climates. Examples include polyethylene vapor barriers between interior wallboard and insulation in frigid climates, and in high-humidity spaces like spas and bathrooms.
Below-grade vapor barriers are placed against concrete surfaces to prevent ground moisture infiltration before installing wood framing. A polyethylene moisture barrier over exposed dirt in crawl spaces is also beneficial.
Types of Vapor Barriers
Common materials for vapor barriers include:
- Extruded polystyrene or foil-faced foam board insulation
- Sheet-type roofing membranes
- Aluminum sheets or paper-backed aluminum
- Polyethylene plastic sheets
- Exterior-grade plywood
Code Requirements for Vapor Barriers
Code requirements for vapor barriers depend on the climate zone. The 2021 IRC R702.7 and 2021 IBC 1404.3 mandate Class I or II vapor barriers on the interior of frame walls in climate zones Marine 4 and 5, 6, 7, and 8. Climate zones 1, 2, and 3 do not require them.
Weather Barriers: Protection Against the Elements
A weather barrier, as defined by the AAMA, is a surface or wall responsible for stopping air and water infiltration to the building's interior, protecting the structure and its occupants from mold and rot. Placing a weather barrier over sheathing and behind siding allows moisture that infiltrates the wall system to dry out quickly.
Weather Barriers vs. Water Barriers
Weather-resistant barriers stop the passage of bulk water, vapor, and air. Water-resistant barriers offer only a continuous water-resistant barrier under the exterior wall veneer.
Why Building Envelopes Need Weather Barriers
Permeable weather barriers protect buildings against moisture-laden air and water infiltration, shielding the structure and occupants from unhealthy mold and rot. They also allow moisture that accumulates in the wall system to escape, preventing condensation. High-quality permeable weather barriers resist air, moisture, and vapor, contributing to energy-efficient, healthy, long-lasting, and comfortable buildings.
Weather Barrier Codes
The WRB must comply with 2021 IBC 1402.2 requirements for water resistance and vapor permeability, and 2021 IRC R703.1.1 for water resistance.
The Importance of Integrated Moisture Management
An effective moisture management strategy is crucial for preventing devastating problems within a building. Moisture trapped inside a wall cavity can cause deterioration, loss of insulation R-value, and, most seriously, mold and mildew growth, leading to respiratory ailments.
Combining Barriers for Optimal Performance
Successful moisture management strategies often combine multiple layers of protection. This can include high-performance insulation, a vapor barrier, a water-resistive barrier, an interior air barrier, and an exterior wind barrier to reduce the potential for seasonal surface condensation and rainwater penetration. For instance, AIR-SHIELD STPE is a fluid-applied, vapor-permeable air and liquid moisture barrier that allows moisture vapor transmission while resisting bulk water intrusion, contributing to a continuous, monolithic vapor-permeable air barrier.
The differences between air, moisture, vapor, and weather barriers are crucial to the design of energy-efficient buildings. Achieving these functions requires a clear understanding of their distinct roles and proper integration into the building envelope.
