Compressed air is a vital utility in many industrial and workshop applications, serving as a powerful driving force for automation and productivity. However, it often comes with a hidden challenge: moisture. This article explores the causes of moisture in compressed air systems, the detrimental effects it can have, and a comprehensive range of solutions for its removal and prevention.
Understanding the Problem: Moisture in Compressed Air
When air leaves a compressor, it is hot and fully saturated with moisture. As this compressed air travels through the system and cools - particularly in colder environments or during outdoor pipe runs - the water vapor condenses into liquid water. While seemingly minor, this condensation can lead to significant issues, undermining system reliability, product quality, and energy efficiency.
Several factors contribute to moisture buildup in air compressor systems:
- Intake Air Quality: Operating in a humid environment means the intake air naturally contains higher amounts of moisture.
- Compressor Capacity vs. Application Strain: If a compressor is under too much strain for its capacity, the internal processes generate excessive heat, exceeding the machine's threshold. This is particularly common in piston compressors during long usage cycles. An overworked compressor will inevitably produce pressurized air with excess moisture.
- Worn Internal Parts: As an air compressor ages, worn internal parts can reduce its efficiency in extracting moisture from incoming air. This is often indicated by prolonged run times, increased noise, and a lack of power.
- Environmental Conditions: High ambient temperatures and humidity, common in many regions, make it more challenging to keep moisture levels down.
Moisture in compressed air can cause serious problems, including rust and corrosion on metal surfaces within the system, damage to sensitive tools and pneumatic machinery, product spoilage, and unplanned downtime.
Strategies for Moisture Removal and Prevention
Effectively managing moisture in compressed air requires a multi-step approach, combining mechanical separation, filtration, and drying technologies. Prevention is as crucial as removal.
1. Cooling and Condensation
The fundamental principle behind moisture removal is cooling. Hot, compressed air holds more moisture than cooler air. Allowing the air to cool and reducing its velocity causes water to precipitate out.

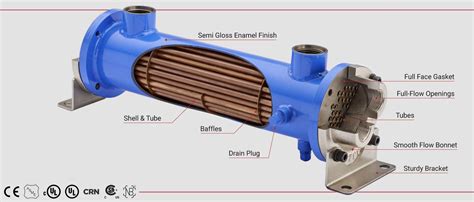

Aftercoolers (Heat Exchangers)
An aftercooler, or heat exchanger, is installed immediately after the compressor to cool the compressed air. This is achieved by using either air or water to reduce the temperature, causing a significant amount of moisture to condense. Aftercoolers can reduce the air temperature to within 5-10°F of the cooling medium's temperature.
Piping Systems for Cooling
A well-designed piping system can also contribute to cooling and moisture removal. Running air lines in a shallow slope (either up or down, depending on preference and condensation efficiency) from the compressor to outlets allows condensed water to collect. Vertical drain legs with drain valves at the lowest points of these lines provide a means to remove the accumulated water. Taking air from the top of the compressor tank, rather than the bottom, can sometimes yield wetter air as warmer air rises.
Some suggest a minimum of 50 feet of line run to allow adequate cooling and condensation before filtration. This can be achieved through various routing methods, such as up and down walls, if space is limited.
2. Separation and Filtration
Once moisture has condensed into liquid droplets, separation and filtration methods can capture it. It's important to note that standard 40-micron air filters are often insufficient for removing significant moisture and oil mist, though they may be adequate for basic shop air tools.
Water Traps and Separators
A water trap is the most basic component for moisture filtering. As ambient air enters the compressor, it passes around a bowl that extracts moisture, which is then released through a drain. These are often used in conjunction with other filtering parts.
For enhanced performance, a water and dirt filter can be installed downstream. For applications like painting or precision work, a coalescing filter, often preceded by a 5-micron filter to prolong its life, is recommended. Coalescing filters are effective at removing both moisture and oil mist.
The placement of filters is critical. A filter located immediately next to the compressor is largely ineffective because the warm air can easily bypass it. Locating filters further down the line, where the air has cooled, is much more effective for water removal.

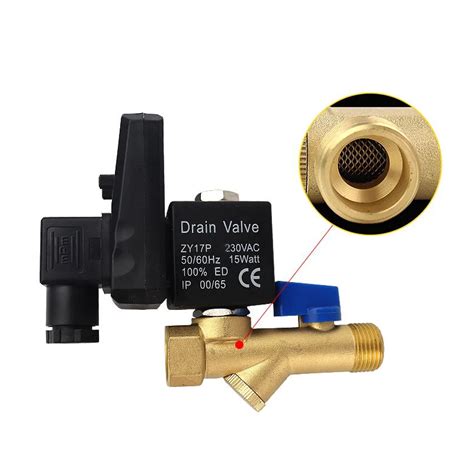

Automatic Drain Valves
Automatic drain valves are essential for regularly removing liquid water from the bottom of the compressor tank and any additional storage tanks. These can be timer-controlled or float-operated. Ensuring these valves are functioning correctly is vital for preventing corrosion and system damage. Regularly testing these valves is a key maintenance step.
3. Air Drying Technologies
For applications requiring extremely dry air, various air dryer technologies are employed:

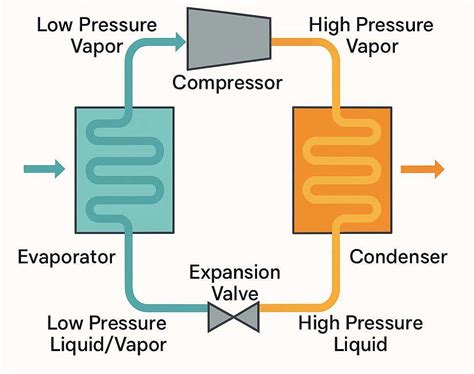

Refrigerated Air Dryers
These dryers function similarly to a refrigerator, chilling the compressed air to condense water vapor. The condensed water is then removed. Refrigerated dryers are common for general use and come in cycling and non-cycling types. Cycling dryers conserve energy by activating only when needed, while non-cycling dryers run continuously.
When using a refrigerated dryer, the target temperature is typically between 35°F and 50°F (1.5°C to 10°C), resulting in a pressure dew point of 33°F to 39°F (0.5°C to 3.8°C).
Desiccant Air Dryers
Desiccant dryers use absorbent materials, known as desiccants (like silica gel), to remove moisture from the air. These often feature twin pressure tanks that cycle between drying and regeneration. During the drying cycle, air passes through desiccant beads, absorbing moisture. During the regeneration cycle, the desiccant is heated and depressurized to release the absorbed water.
Desiccant dryers are highly effective and can achieve very low dew points, making them suitable for demanding environments.
Deliquescent Dryers
Less common, deliquescent dryers use a single tank of desiccant beads. As pressurized air passes through, the desiccant creates a liquid effluent that extracts moisture, which is then drained from the system.
Membrane Dryers
These dryers utilize hollow polymer fibers to selectively permeate water vapor from the compressed air stream.
4. Over-compression (Pressure-Based Moisture Removal)
One method to encourage moisture removal involves compressing the air to a higher pressure than the intended working pressure. This increase in pressure concentrates the moisture, turning it into liquid water, which can then be more easily separated. After separation, the air is expanded to the required working pressure.
For example, pumping air to 140 psi and then regulating it down to 80 psi can help wring out more water, especially if the flow rate is modest. This is likened to wringing out a saturated washcloth.
Pneumatic Compressor Moisture Removal Table Explained | Updated Audio Version in Description
5. Other Considerations and Advanced Solutions
Mini-Split Ductless A/C System
For workshop environments, a Mini-Split Ductless A/C system with a heat pump option is considered a highly beneficial investment for controlling temperature and humidity.
Chiller Units
Using a repurposed freezer as a chiller unit is a cost-effective idea for cooling compressed air. This would involve setting up a system where the compressed air passes through coils cooled by the freezer.
Water-Cooled Condensers
In locations with access to cold water sources, such as glacier-fed rivers or well water (around 65°F), a water-cooled condenser can be employed. This might involve wrapping copper tubing around the air pipe and recirculating cold water through it using a pump.
Intercoolers and Vortex Air Coolers
For supercritical requirements demanding absolutely bone-dry compressed air, an intercooler can be added. A more moderately priced option is a vortex air cooler, though these may require more air and generate more noise.
In-line Heaters
In some specialized applications, such as for CNC spindles requiring air as part of the system, an in-line heater can be used to dry the air.
Nitrogen Tanks
For completely dry air, blowing a tank of nitrogen slowly through the air lines can be an option, though this is typically for very specific requirements.
Maintenance and Best Practices
Regardless of the chosen methods, regular maintenance is key:
- Regular Draining: Manually drain the compressor tank at the end of each day or after significant use.
- Servicing Drains and Filters: Automatic drains, separators, and filters must be serviced regularly to ensure they are functioning correctly and not saturated.
- System Checks: Pay attention to unusual noises or prolonged run times from the compressor, which can indicate failing parts or an overworked system.
- Proper Airflow Management: Ensure adequate airflow and cooling for the compressor and associated equipment.
- Relocation if Necessary: If the compressor is in a steamy or humid environment, consider relocating it to a cooler, drier area, preferably indoors.
The most effective way to keep moisture out of a compressed air system is a multi-step process that includes mechanical separation, moisture filtration, condensate drip legs, and appropriate drying technologies tailored to the specific application and operating environment.
