Condensation under a metal roof is a concern for owners of various buildings, including agricultural structures, man caves, and horse barns, due to its corrosive effects. The impact of condensation in post-frame buildings is significant, but it can be managed through proper building techniques. While keeping external water out is a primary focus, the internal moisture problem is often overlooked.
The principle behind condensation is similar to the saying, "It's not the heat, it's the humidity." This applies indirectly to livestock and equipment housed within buildings, as excessive humidity can become a considerable problem for them.

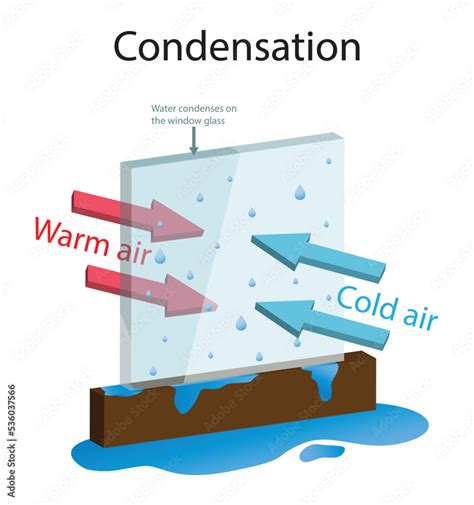

Understanding Condensation Formation
According to Adam Kraus, an Engineer at Wick Buildings, condensation typically occurs at night. This is when the interior temperature of a building is warmer than the exterior. Warm, moist air rises and comes into contact with the cold roof surface, causing it to cool. As the air cools, its capacity to hold moisture decreases, leading to condensation.
There are essentially three key factors to consider in the battle against condensation:
1. Site Preparation and Design
A crucial first step involves smart site preparation and building design. Architects and builders attuned to a building's intended use can strategically position the structure and incorporate features that prevent moisture from entering in the first place. This also includes accounting for moisture produced internally.

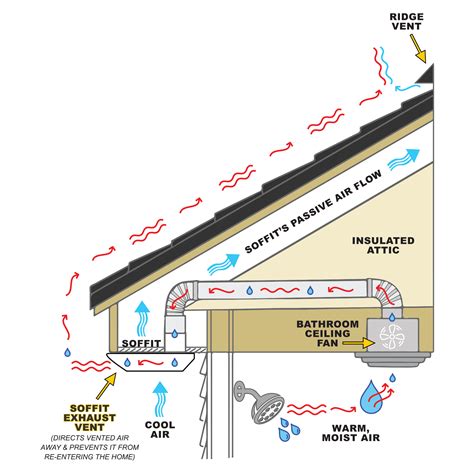

2. Natural Ventilation
Natural ventilation leverages local wind and temperature differences between the building's interior and exterior. The effectiveness of this method relies heavily on the design provided by the architect and builder. While commonly used in agricultural and suburban buildings, natural ventilation is often misunderstood. It requires precise calculations for ridge and eave venting, as well as their proper placement.
Adam Kraus notes that the necessity for adequate venting is frequently underestimated, particularly at the eaves. Ideally, the total area of openings at the eaves should match that at the ridge. Unfortunately, this is not always executed correctly. Even a well-ventilated building can experience issues if internal moisture sources and weather conditions overwhelm the system.
3. Managing Internal Moisture and Temperature
When natural ventilation cannot fully optimize methods one and two, or when external factors are overwhelming, additional measures are needed. Traditionally, insulating the roof panel has been employed to prevent the panel's temperature from reaching the dew point. Furthermore, a vapor barrier is added to prevent moist air from migrating through the insulation and condensing on the roof surface.
The primary goal of insulation is to maintain a low enough temperature difference between the inside and outside, at a specific humidity level, to prevent reaching the dew point. However, a larger temperature difference allows the system to handle less humidity before condensation occurs. Conversely, higher humidity levels mean the system can tolerate less temperature difference before dripping.
A significant drawback of traditional vapor barriers is their susceptibility to tearing, which compromises the entire system.
Advanced Solutions for Condensation Control
Wick Buildings utilizes **CondenStop**, a pre-installed membrane designed to capture condensation droplets as they form. This membrane holds the moisture until conditions change, allowing it to evaporate back into the air. This approach simplifies dealing with condensation, shortens the construction process, and saves both time and money.
According to Adam, ten square feet of surface can hold up to two pounds of water, representing a substantial amount of moisture. CondenStop is integrated directly into the roofing material and is pre-installed on-site, meaning it cannot be added to existing structures. Constructed from polyester and rubber, it offers resilience against aging and corrosion.
Applying Condenstop to Metal During Production | Amazing Condensation Barrier for Metal Roofs
Condensation is not an uncontrollable natural force; it is a scientific phenomenon. Understanding the factors contributing to excessive humidity within a structure is key. These factors can be addressed during the pre-construction phase or modified after the building is erected. It requires a balancing act, often involving strategies like insulation and specialized membranes such as CondenStop.
It is crucial not to underestimate the corrosive potential of condensation for the well-being of a building's contents. While water is essential for life, unchecked, it can lead to significant financial losses.
Underlayment for Metal Roofs
Underlayment is a water-resistant material installed beneath the primary roofing layer. For metal roofs, there are three main types of underlayment, each with its own advantages and disadvantages.
Felt Paper Underlayment
Also known as tar paper, asphalt-saturated felt, or asphalt-soaked felt, felt paper was historically the most common underlayment due to its low cost. However, its limited lifespan presents a challenge when paired with the longevity of a metal roof.
Synthetic Underlayments
These are constructed from woven polyethylene or polypropylene fibers treated with a resilient polymer to create a protective barrier between the roofing material and the underlying deck. When used as a standalone product, metal roofs are already highly energy-efficient. However, when combined with advanced synthetic underlayments, the energy efficiency of metal roofing can be amplified significantly-up to four times.
For instance, a DECRA metal roof installed over felt paper enhances thermal performance by 48%. The rubber-like properties of self-adhering synthetic underlayment make them self-healing, effectively sealing around fasteners and penetrations. This effectiveness in reducing water penetration risk has led to self-adhering underlayment also being referred to as an ice and water shield. It is particularly useful when rising heat from a home melts snow or ice, which can then seep into the roof's crevices.
Proper installation of self-adhering underlayments is essential. When drying in a roof, the underlayment should overlap ridges and hips. Most synthetic underlayments are approved for roof slopes as low as 3:12, provided the material is overlapped by approximately 50%. Underlayment must also comply with specific ASTM standards, including ASTM D 226 (Type I or Type II), ASTM D 4869 (Type I or Type II), or ASTM D 1970.
MoistureLok Membrane
MoistureLok is an engineered anti-condensation membrane designed to absorb moisture when dew-point conditions arise and release it back into the air as temperatures normalize. This factory-applied membrane traps and stores moisture beneath metal roofing panels, preventing drips and protecting the building's interior. Because it is applied during panel production, it installs with the roof panel itself, eliminating the need for a separate field-installed layer. This saves labor, reduces on-site steps, and negates the need to manage traditional vapor barriers.
